heavy duty woodworking 1325 ATC cnc router machines with vacuum table for Professional panel furniture cabinet door

FOB Reference Price:Get Latest Price
$12,120.00 - $22,730.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JCT1325L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
CHAODA
Voltage:
AC380V,50HZ/60HZ
Dimension(L*W*H):
1300mm*2500mm*300mm
Certification:
CE BV SGS TUV
Warranty:
one year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Modle:
JCT1325L
Lathe bed structure:
Heavy duty Steel T-extrusion
Table surface:
Vacuum table with T-slot,double use
Reposition accuracy:
±0.03mm
Max.working speed:
0-30000mm/min
Spindle power motor:
9kw air cooling ATC spindle
Spindle speed:
0-18000 RPM
Working motor:
Japan YASKAWA servo motor and driver
inverter:
Taiwan Delta
Power(W):
9KW
Weight:
2350kg
Supply Ability
Supply Ability:
100 Set/Sets per Month OEM
Packaging & Delivery
Packaging Details
wrapped with production film, then fastened in the container with metal wire.
Port
Qingdao or other chinese port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Product Description

heavy duty woodworking 1325 ATC cnc router machines with vacuum table for Professional panel furniture cabinet door

Model number
JCT1325L
Lathe bed structure
Heavy duty Steel T-extrusion
Table surface
Vacuum table with T-slot,double use
X, Y, Z working area
1300*2500*300mm
X structure
Germany Helical Rack and pinion, linear square rail
Y structure
Germany Helical Rack and pinion, linear square rail
Z structure
Taiwan Ball screw, Taiwan linear square rail
Max.operating speed
0-60000mm/min
Max.working speed
0-30000mm/min
Spindle
9kw air cooling ATC spindle
Spindle speed
0-18000 RPM/min
Collet
ER32
Working mode
Japan YASKAWA servo motor and driver
Inverter
Taiwan Delta
Operating system
Syntec
Command code
G code(*uoo,*nc,*mmg, *plt)
Oil system
automatic
Running circumstance
Temperature: 0℃~45℃; relative humidity: 30%~75%
Voltage
AC380v, 50Hz/60Hz
Weight
2350KG

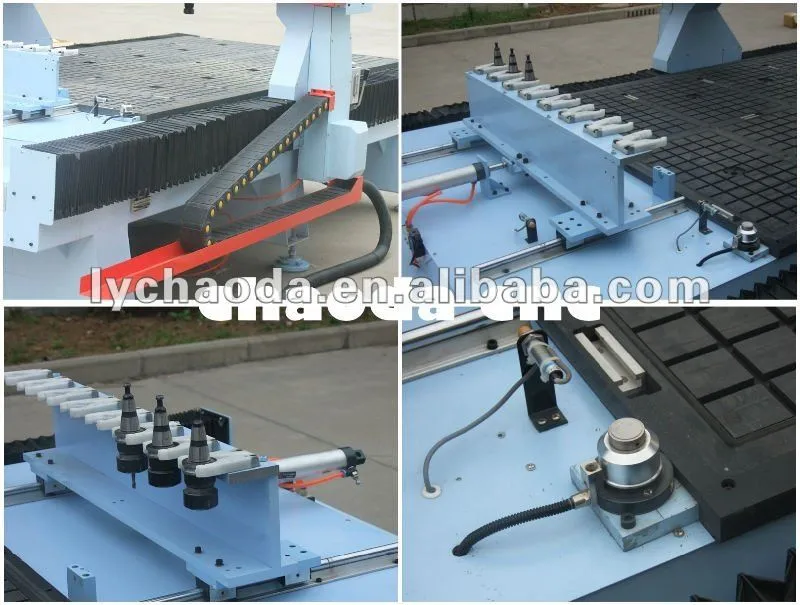

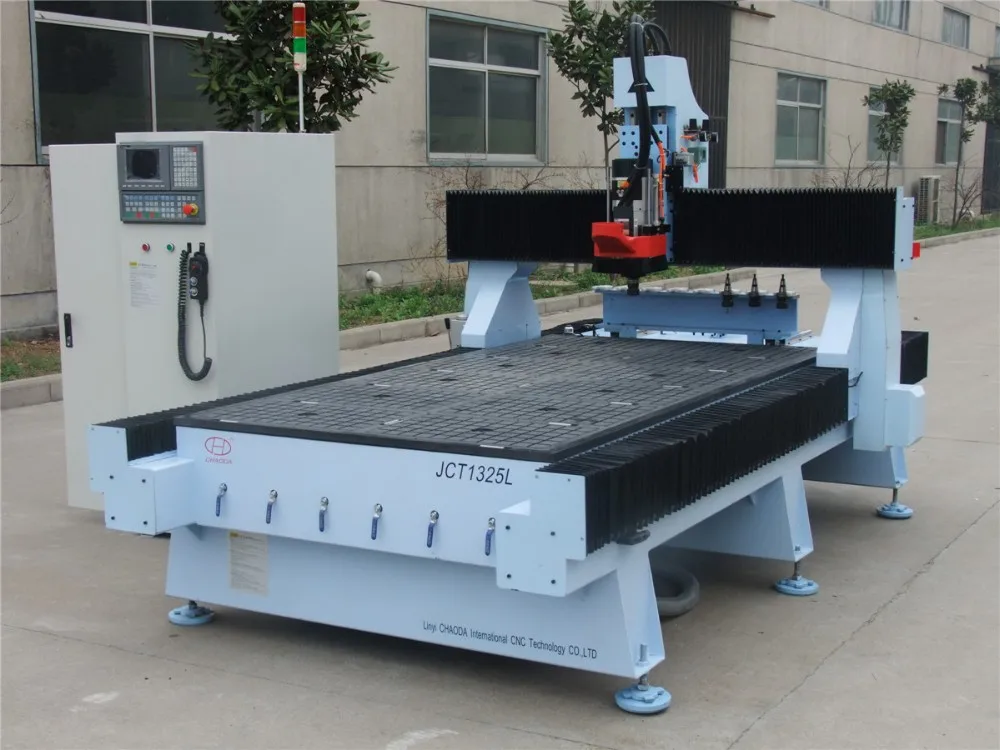

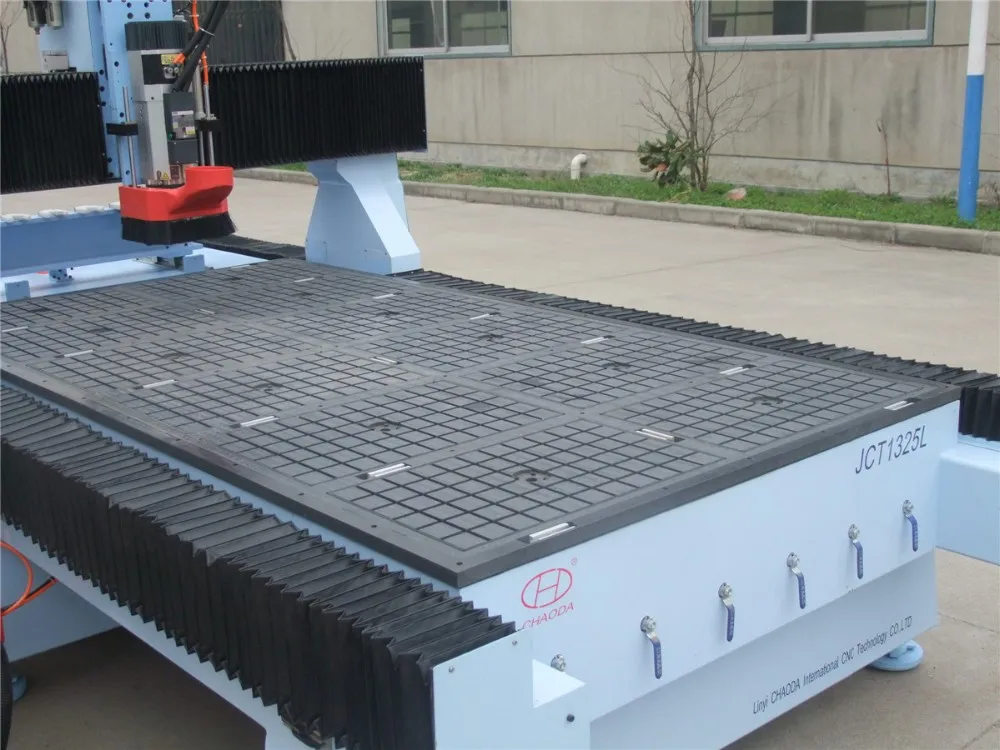

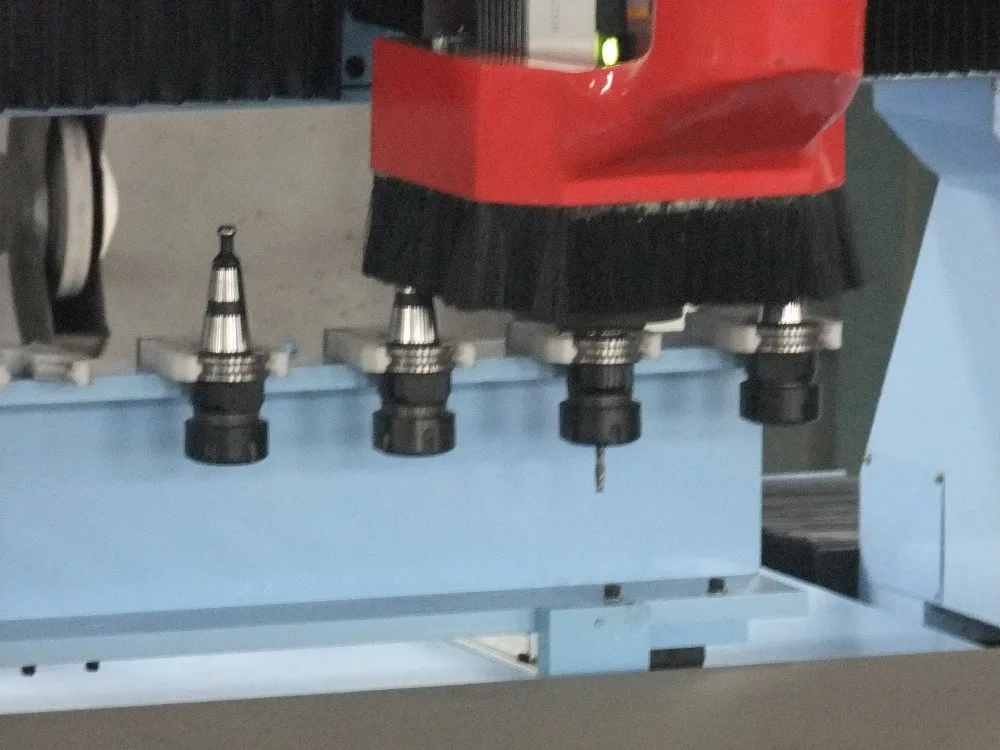

Detailed Images

Technical Features

1.All machine parts adopted top quality from all over the world,to make machine with high performance and durability.


2.Y axis adopts double motors to keep stable moving.

3.High accuracy Rack Rail travel method with high speed.

4.heavy duty T-extrusion structure, keep machine with good stability.

5.Imported Square Linear Rail, high accuracy.

Application Materials

1.Wood Material:Solid Wood, Red wood, Pine, beech, oak, walnut, maple, birch ,cherry,

   Particle board, MDF

2.Acrylics material:Acrylics, Light guide plate and diffuser plate.

3.Thermoplastic Elastomers :Rubber, Plastic, Resin and Foam Products.

4.Engineering Plastics Material: PVC ,ABS, PE, PF, PU

5.Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates.

6.Light Metal Material:Aluminum extruded, Copper and Aluminum Plates.

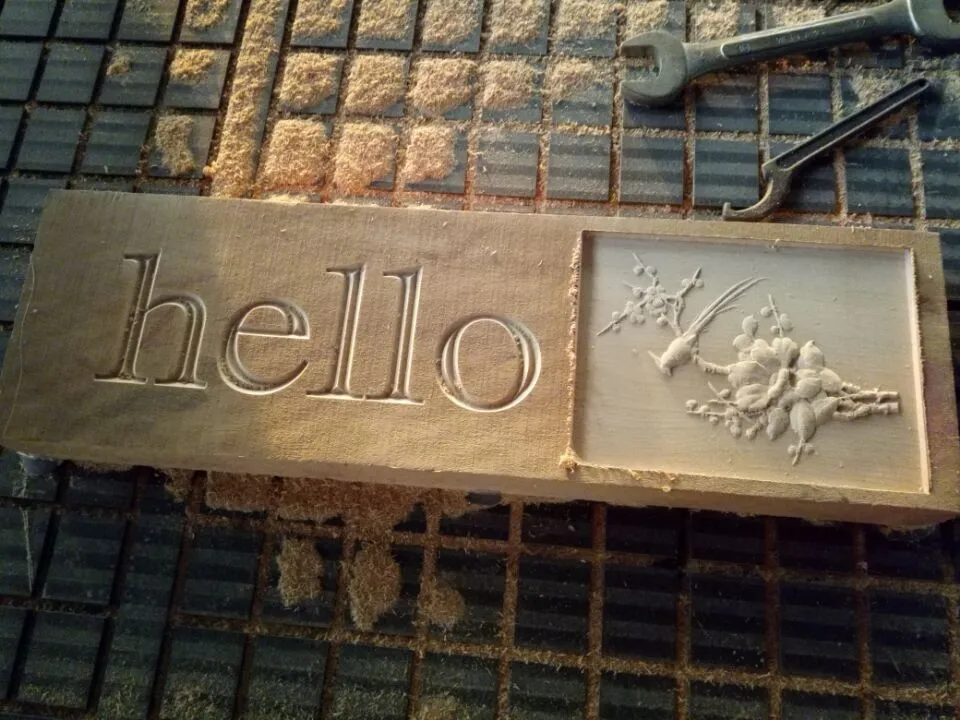

Sample pictures
Packing & Delivery
Certifications

OUR CETIFICATION INCLUDE: CE, BV, TUV, SGS

Free training
2 days free training in factory

Our Company

Our factory was established in 2002 and covers 40000 Square meters. We have experienced and professional engineers who devote themselves to machines' research, development, production,and after- sale service .Our machines have won praise from customers worldwide and with very good reputation in this field.
