Good price multi rotary spindle 5axis 3D cylinder engraving cnc router

FOB Reference Price:Get Latest Price
$22,000.00 - $75,750.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JCW1325R-8H5AXIS
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Working Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
CHAODA
Voltage:
380VAC 3phase 50-60HZ
Dimension(L*W*H):
2.4*3.65*2.4m
Certification:
CE,BV,TUV, SGS, ISO
Weight (KG):
3000
Warranty:
One year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Key Selling Points:
Long Service Life
Name:
multi rotary spindle 5axis 3D cylinder engraving cnc router
Working size:
1200(L)x300(D)mmx8 rotaries
Control system:
5 axis SYNTEC control
Spindlespindle:
3.5KW*8 Air-cooling spindle
Driver & Motor:
Servo driver & motor
Inverter:
Delta Inverter
Applications:
For mass production of sculpture,statue,buddha and furniture legs
Option:
3D scanner for easy copying and designing
Power(W):
3.5KW*8 Air-cooling
Supply Ability
Supply Ability:
300 Set/Sets per Month 5 axis cnc wood carving machine for classical furniture mass pro
Packaging & Delivery
Packaging Details
Wrapped with protection film, then fastened in the container with metal wire
Port
Lianyungang & Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated

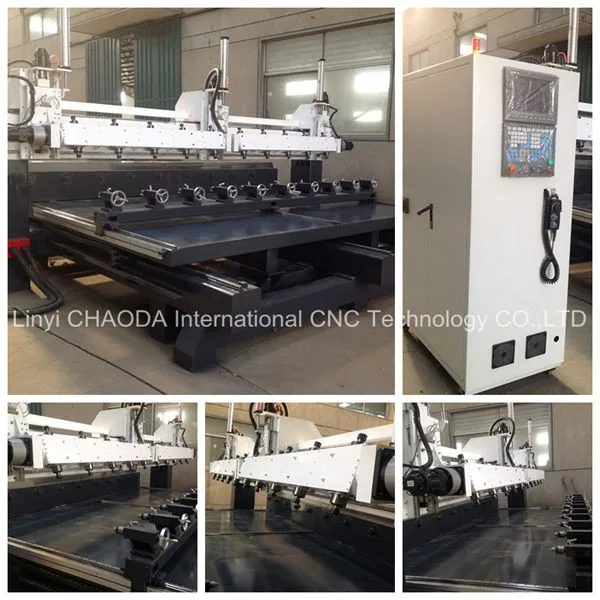

Multi rotary spindle 5axis 3D cylinder engraving cnc router





Product Description

 Features

1.Multi function can engrave both Column/cylinder and Flat works, like sofa chair bed legs/back, furniture etc.

2.Combination of rotary devices and rotary heads/spindles for cylindrical/column works.

Optional movable table for flat works engraving.

3. set/ 8 sets/10 sets options for heads/ spindles and Rotaries.

4. 180 degree rotating spindle/ head designed to engrave complex column/ cylinder works.

5. 360 degree rotating rotary has diameter options,200mm / 300mm /400mm.

6. 1200mm standard length for rotary, can also be customized upon your requests.

7. Each spindle/ head contains 2pcs different cutters equals 2pcs automatic tool changers.

8. Highest quality Japan YASKAWA Servo drivers & motors adopted.

9. 5 Axis control system,easy to learn and operate.

10. Flexible spindles can work together, also can work alone,efficiency greatly improved.



Parameters:

1

Model

JCW1325R-8H

2

Working size

1200mm(L)* 300mm(D)* 8 rotaries

3

Machine size

3650mm(L)* 2250mm(W)*2560mm(H)

4

Spindle Power

3.5kw Air cooled spindle (8pics)

5

Spindle rotating

0-18000rpm

6

Max Moving speed

20m/min

7

Max working speed

15m/min

8

Control system

5 axis Syntec

9

Motor

Japan YASKAWA Servo motor and driver

10

Compatible software

Powermill

11

Max Burden weight

1500KG

12

Oil system

Automatic

13

Voltage

AC380, 3 phase, 50/60Hz

14

Optional device

3D scanner

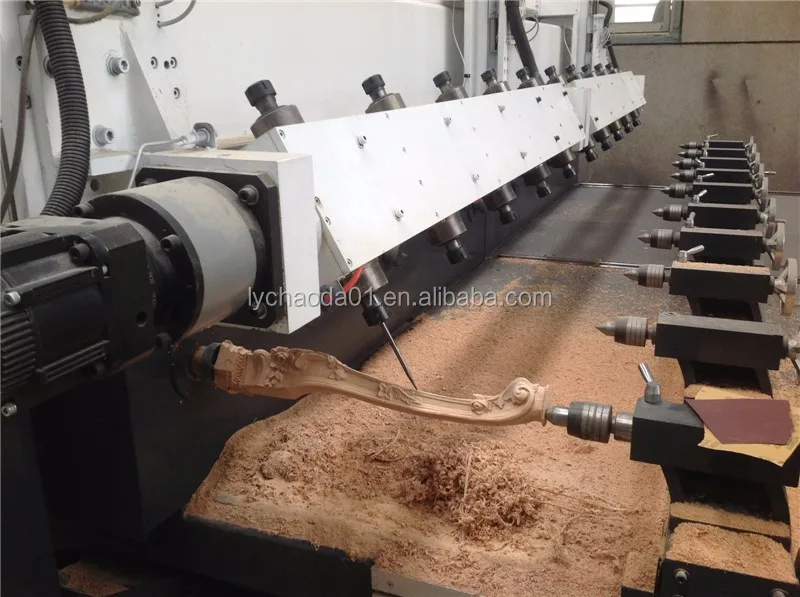

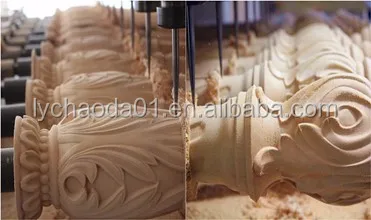

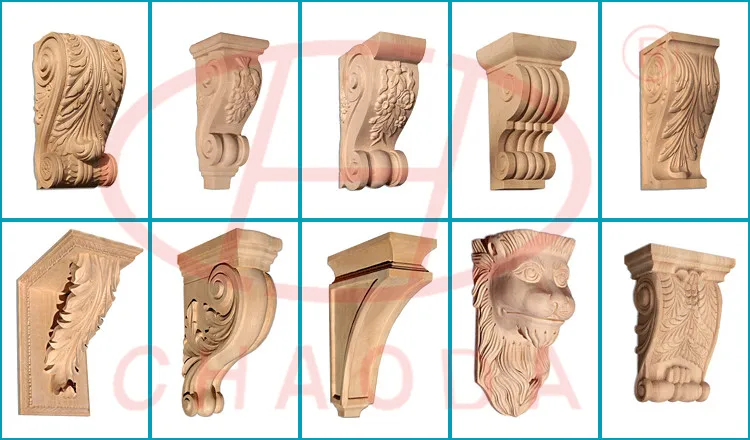

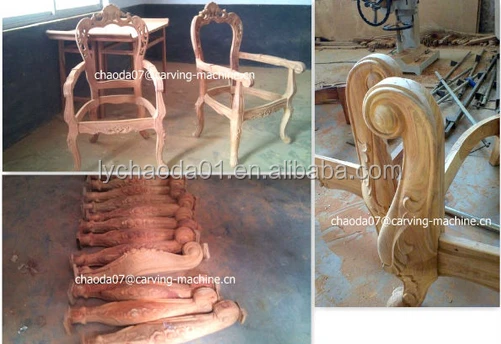

Machine works:







Certificates:



Customer Training





Packaging & Shipping





Company Information

Our factory was established in 2002 and covers 40000 Square meters. We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service .Our machines have won praise from customers worldwide and with very good reputation in this field.
